FM APPROVED DAI CHEN Demountable Flood Panel DCAM-02
FM APPROVED DAI CHEN Demountable Flood Panel DCAM-02 - Image 2

FM APPROVED DAI CHEN Demountable Flood Panel DCAM-02

The Dai Chen Demountable Flood Panel DCAM-02, an FM APPROVED product, is designed to offer unparalleled protection against flooding. Exceptional watertight capabilities and elegant design are combined to ensure your property remains safe and dry during severe weather events. Engineered for reliability and ease of use, the DCAM-02 provides peace of mind and superior flood defense for your valuable assets.
SKU DCAM-02 Category
SKU DCAM-02 Category

Share:

Description

Innovative Invention



No more knobs!

Simply Tighten the Panels in 30 sec!



BEST DEMOUNTABLE FLOOD PANEL EVER!

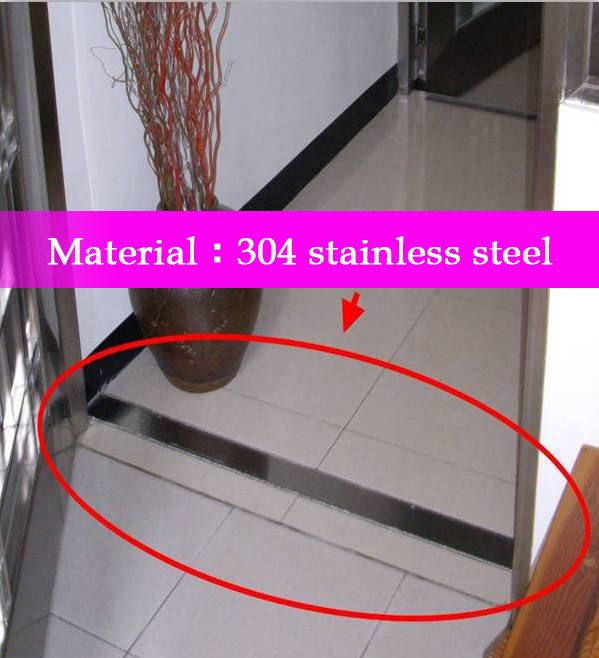

Threshold

Capable of bearing weight exceeding 80 tons without deformation.

Successfully passed the loading test conducted by MIRDC, Taiwan (Metal Industries Research & Development Centre).

Leveled with the ground after installation, preventing the accumulation of sand and water and reducing the risk of tripping hazards.

Anchoring Plate

Fixed on the wall to hook end posts.

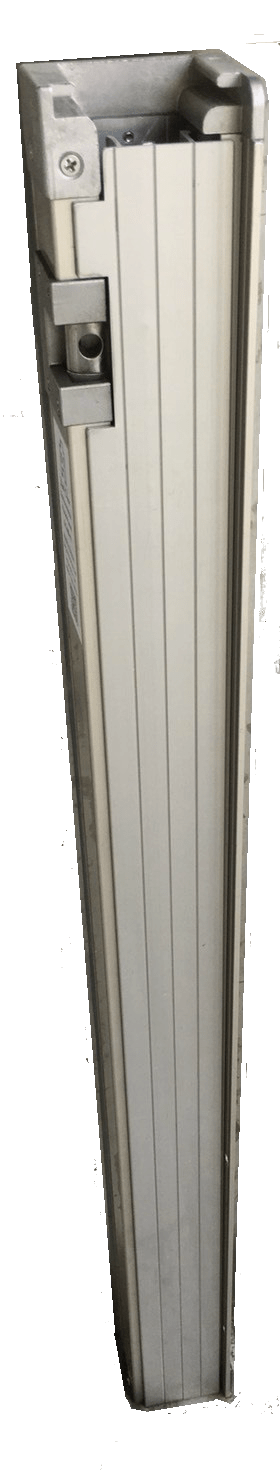

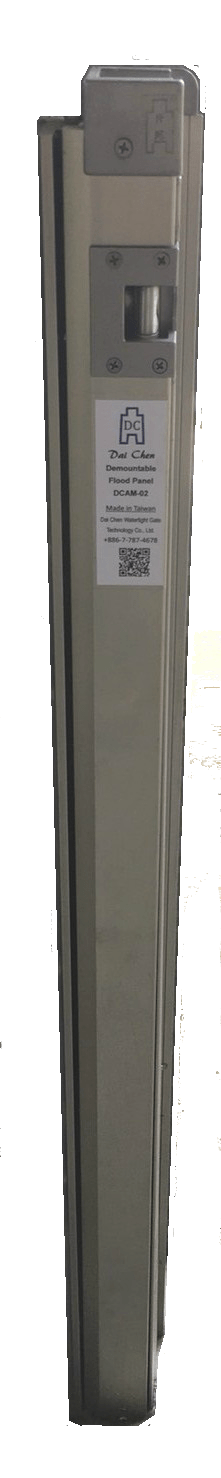

Side Post

It can be applied to various sites using different installation methods:

  • Between-wall, Face-wall, Between-Face wall, and Embedded (if the wall is thick enough).

Equipped with stainless steel tightening mechanisms to securely force the panels downward.

Features EPDM (Ethylene Propylene Diene Monomer) Rubber:

    1. Widely used in car doors.
    2. Capable of withstanding high temperatures up to 160℃ and resisting acids and alkalis.
    3. Weather-resistant with a lifespan of over 10 years.

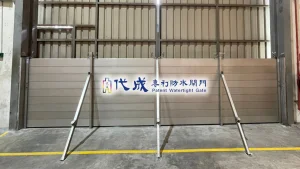

Middle Post

Functions similarly to the Side Post, but with tightening devices on both sides.

Necessary when a broader coverage area is required.

Equipped with bases and braces:

    1. Buried approximately 5 cm into the ground to withstand water pressure.
    2. Leveled with the ground after installation.

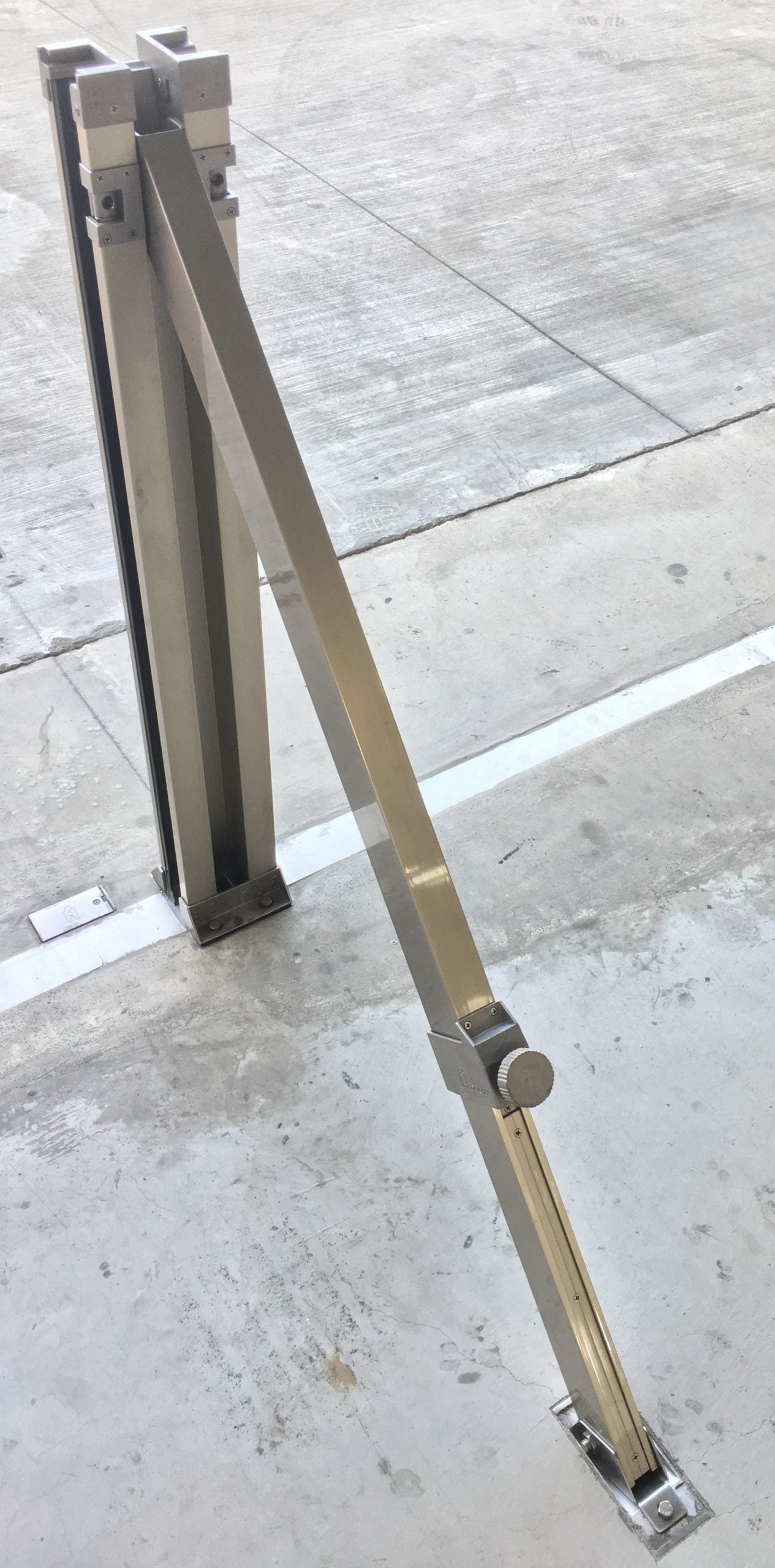

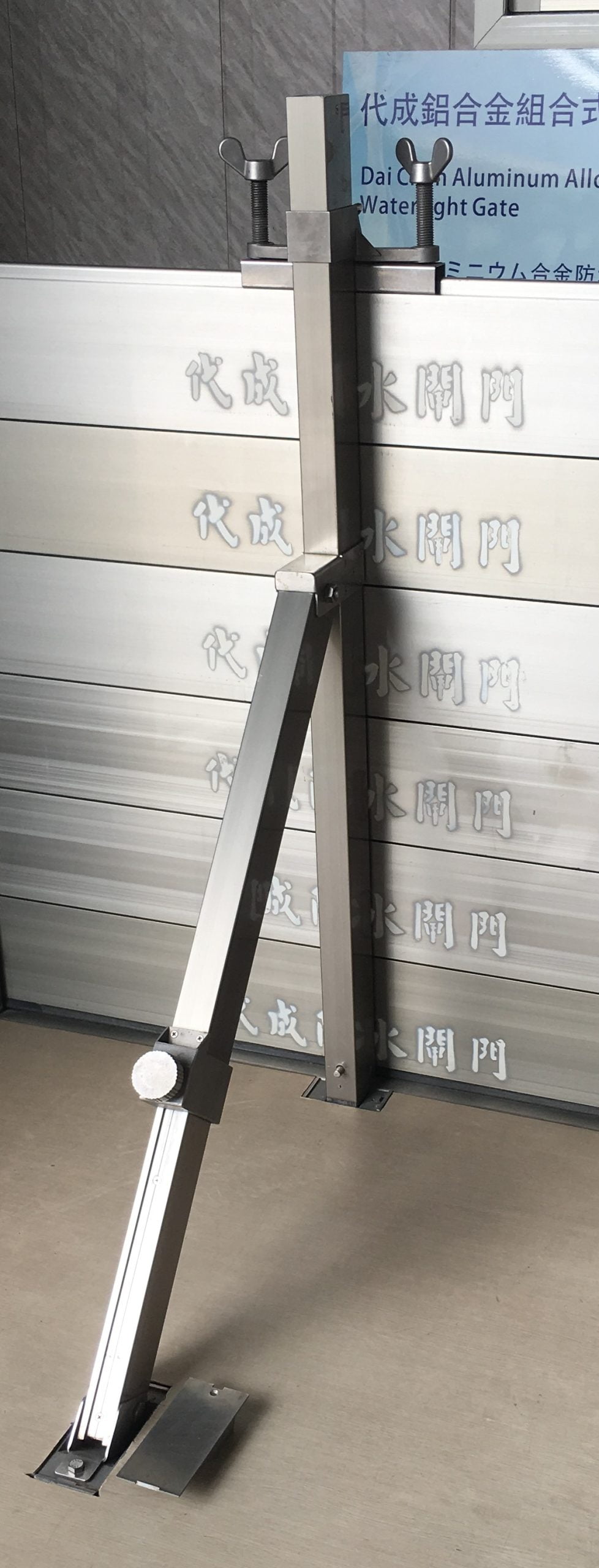

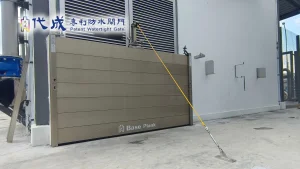

Back Support

Required when current pressure exceeds a certain threshold: The calculation is based on the width and height of the flood panel.

Adjusts and fixes to tighten the panels, providing support to resist current pressure.

Successfully passed the loading test conducted by MIRDC, Taiwan: A span of 1 meter can withstand more than 3700 Kgf of current pressure.

Equipped with bases and braces:

    1. Buried approximately 5 cm into the ground to withstand current pressure.
    2. Leveled with the ground after installation.

Watertight Panel

The surface of each panel is anodized for enhanced durability.

Each panel measures 16 cm in height and 3.5 cm in thickness.

Weighs 2.785 kg per meter.

Features 4 lateral layers to effectively resist current pressure.

Equipped with EPDM rubber inserted into the panel to ensure long-term stability.

Includes plastic covers on both sides to prevent bugs and avoid cuts.

Tested by MIRDC: Each 1600 cm² area can withstand current pressure up to 1300 kg.

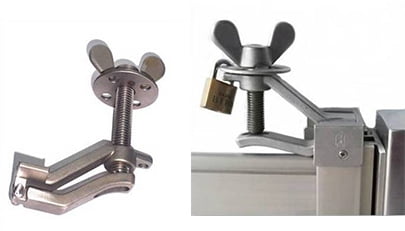

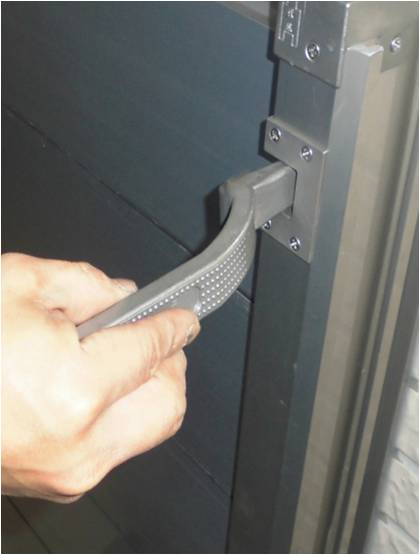

Tightening Lock

Put on the side post or middle post to tighten the panels downward.
Can be locked at the end of the assembly process to prevent the theft of the flood panel or the accessories.

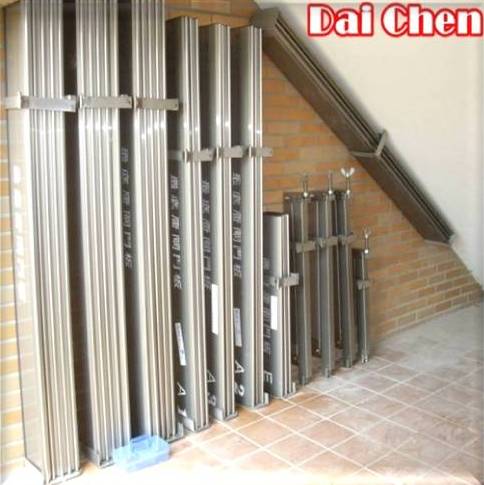

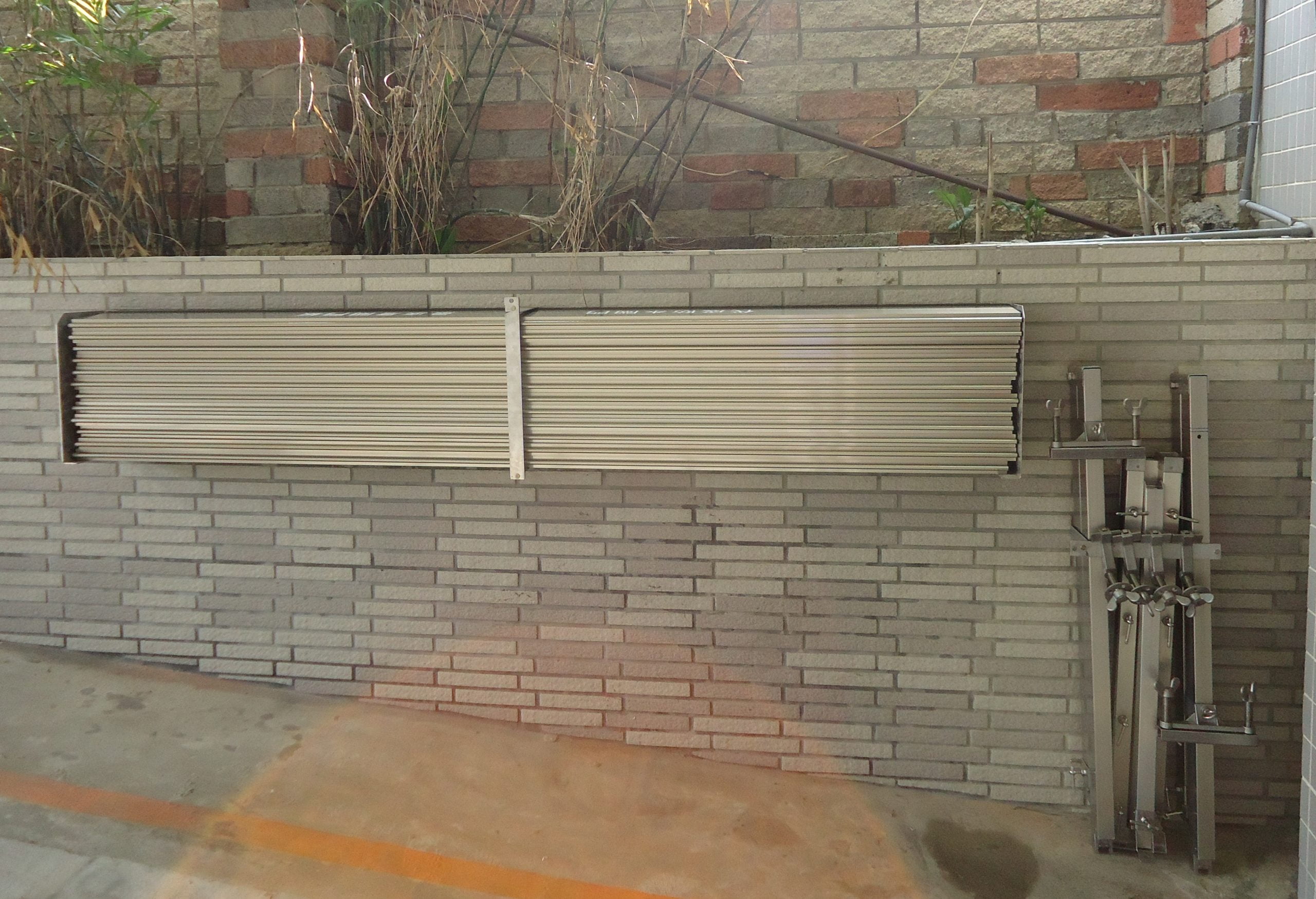

Storage Rack

Storage Rack Types: Horizontal, Vertical, or Embedded.

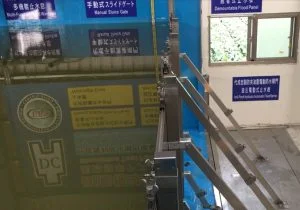

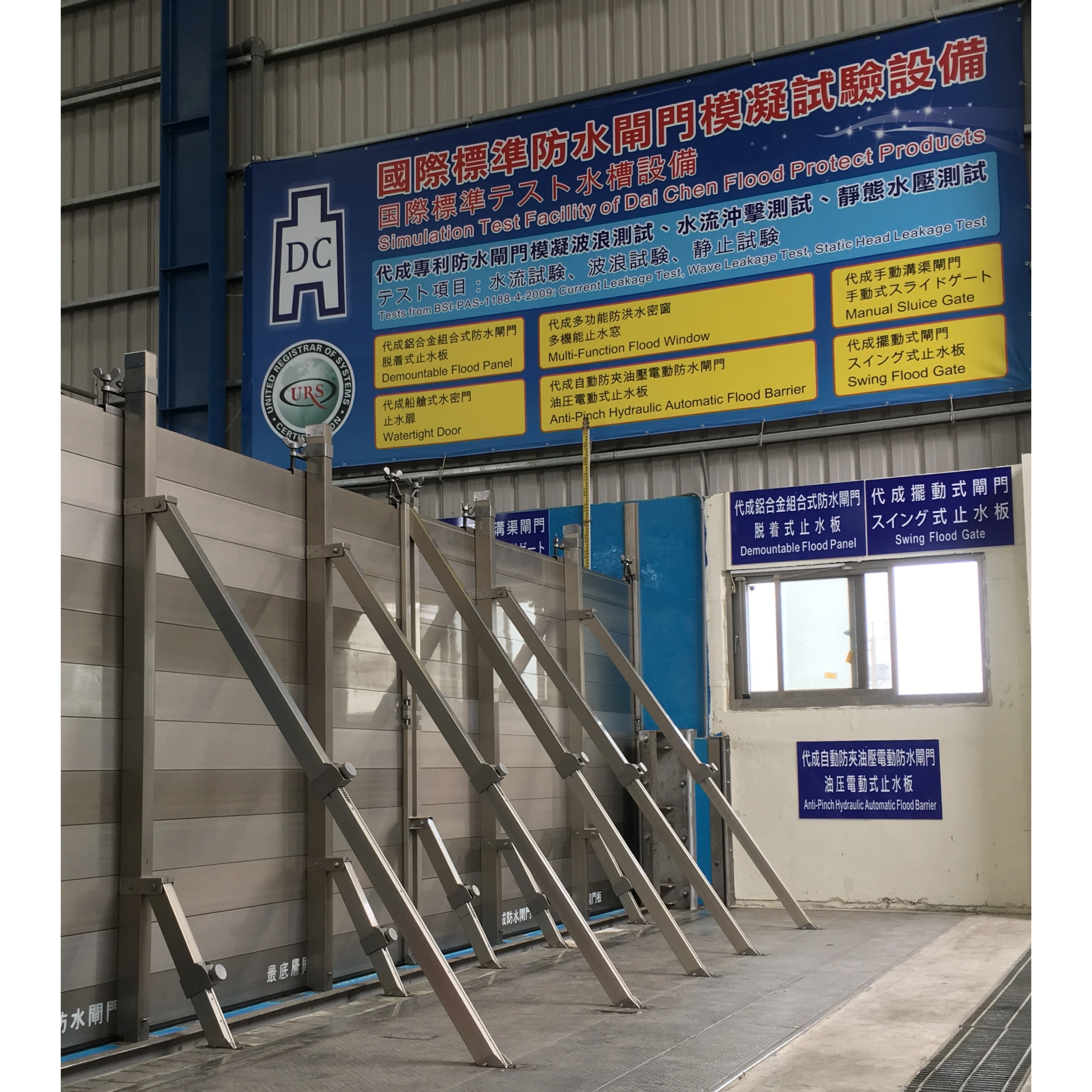

DCAM-02 has been tested according to international testing standards- BSI standard.

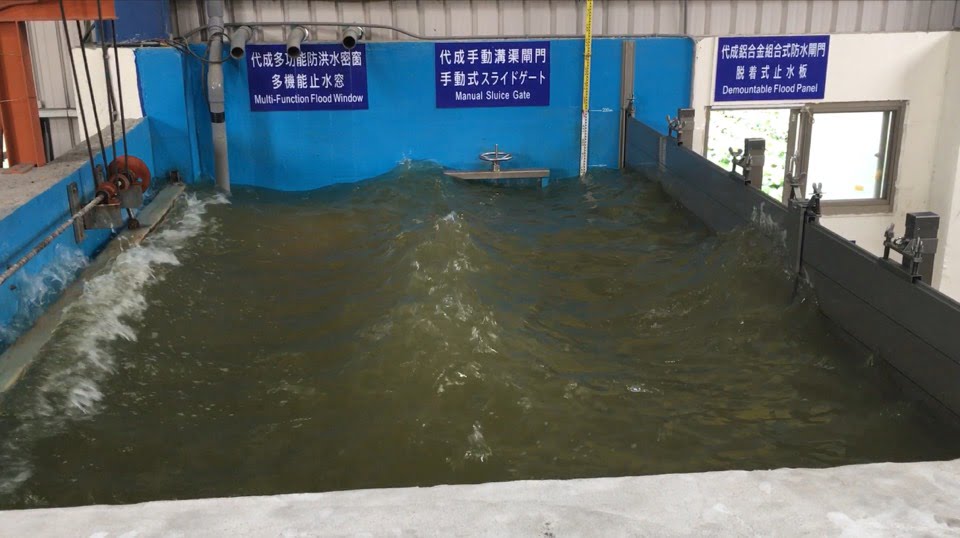

Current Leakage Test

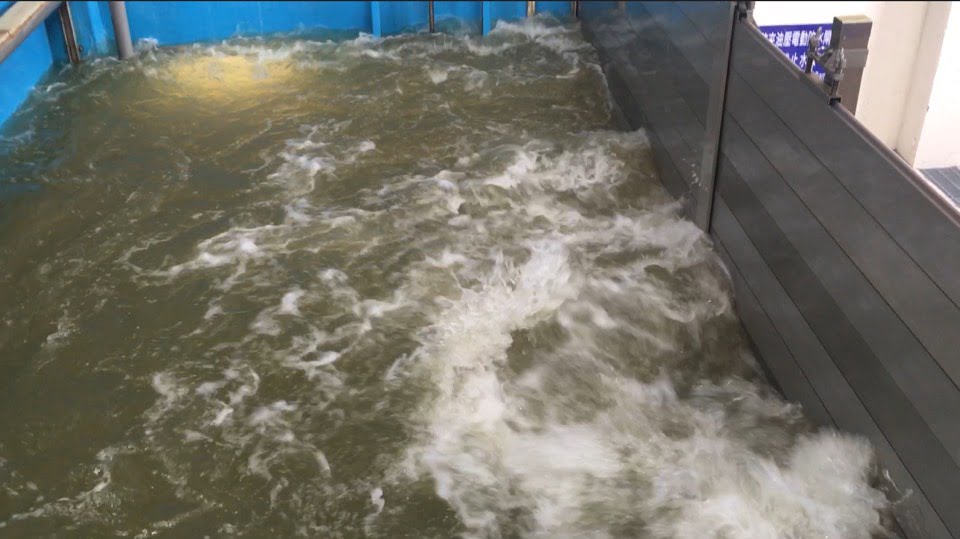

Wave Leakage Test

Static Head Leakage Test

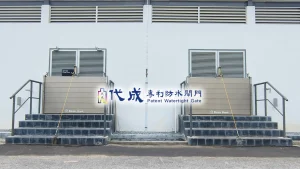

The flood panel, which has obtained patents in Taiwan, the EU, Japan, Thailand, Indonesia, Malaysia, and China, and is currently applying for international patents, is easy to operate, with the tightening process completed by a single individual in just 30 seconds. Its flood-stopping performance is exceptional, and it has already been sold in the USA, Japan, Australia, Malaysia, Thailand, Indonesia, Vietnam, Hong Kong, and Macau.

Detailed Information

Design Demountable Flood Panel
Size Custom Made
Brand DAI CHEN

Material

Threshold

 Stainless Steel 304
Material
Sealing Rubber		 Ethylene Propylene Diene Monomer (EPDM)

Material

Tightening Equipment

 Stainless Steel

Material

Flood Panel

 Aluminium Composite

Application Ideas



Video

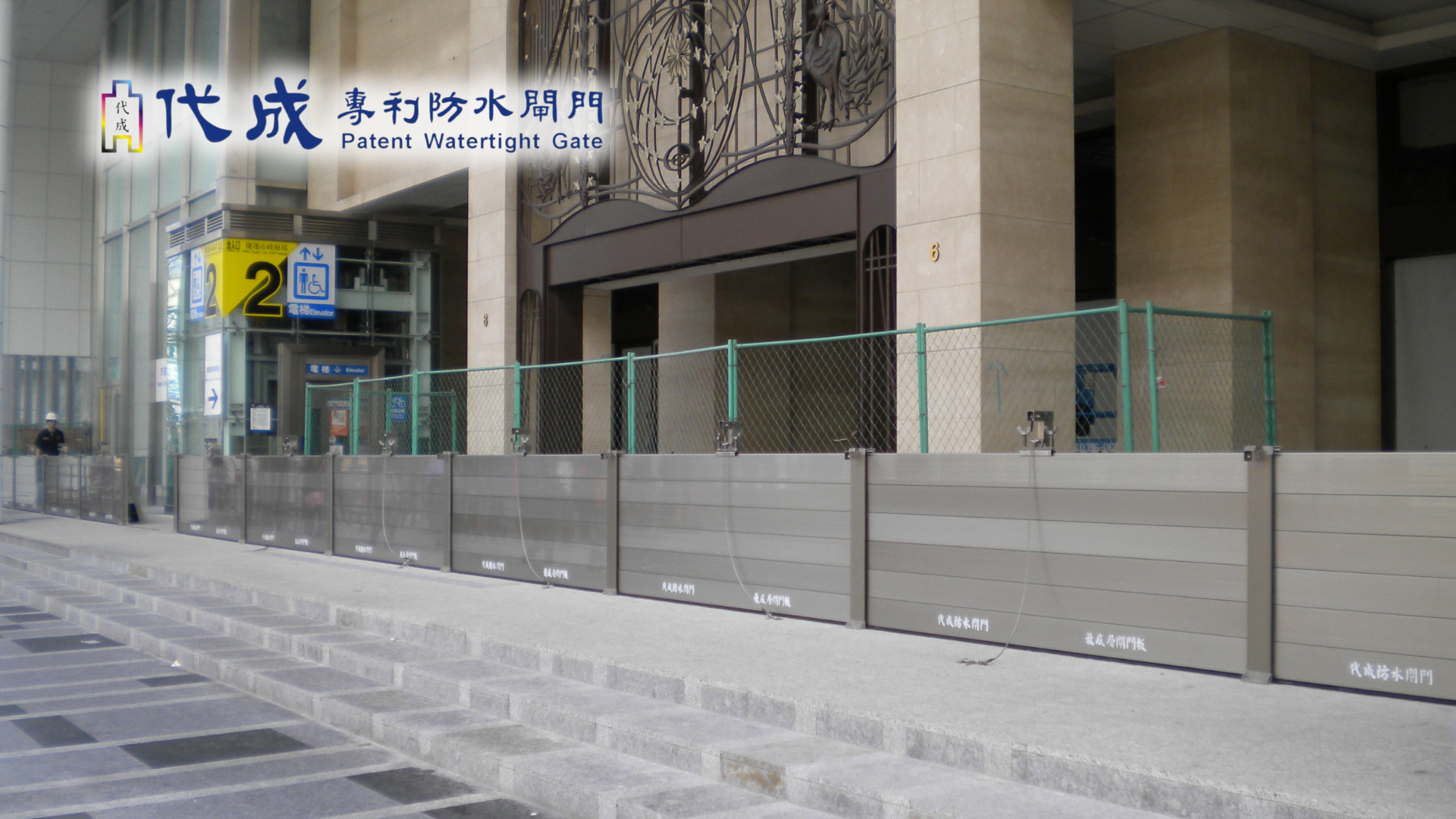

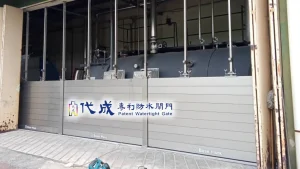

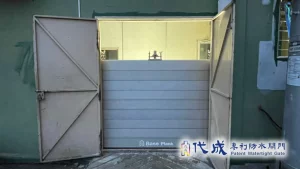

Application

Reviews
